Going Dark in SSMS

I haven’t been a big fan of dark mode in many tools, but I’ve been giving it a try in some applications as my eyes age. I decided to try it in SSMS, which wasn’t as easy as I’d hoped.

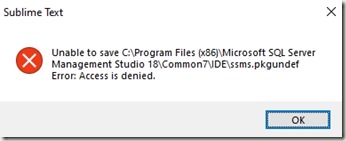

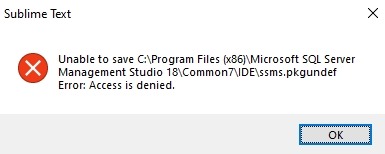

I had heard this was coming, then found some notes it wasn’t coming, and eventually landed on Pinal Dave’s blog that shows how to enable it. I followed the instructions, but had this issue in Sublime Text.

2020-03-19 11_09_26-Sublime Text

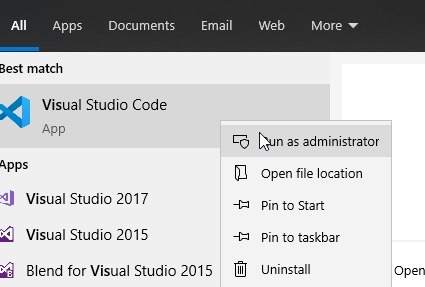

That’s easy to fix. In my case, I didn’t want to restart Sublime in administrator mode, nor did I want to mess with permissions. I decided to use VS Code, since that’s the other default program that appears with many files. I started it in admin mode:

2020-03-19 11_09_48-SQLQuery1.sql - Plato_SQL2017.sandbox (PLATO_Steve (65))_ - Microsoft SQL Server

I accepted the UAC dialog and then clicked File | Open. From there, I pasted in this path: C:\Program Files (x86)\Microsoft SQL Server Management Studio 18\Common7\IDE

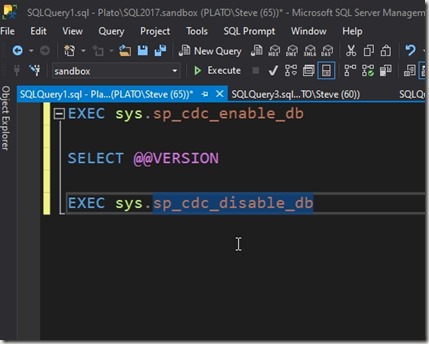

I picked ssms.pkgundef and opened it. Uncommented the last line for the dark theme and saved the file. Then I restarted SSMS and:

2020-03-19 11_11_39-SQLQuery1.sql - Plato_SQL2017.sandbox (PLATO_Steve (65))_ - Microsoft SQL Server

Voila!

ish. Not everything is dark.

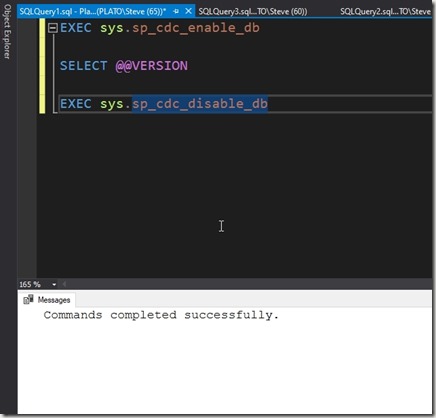

2020-03-19 11_12_01-SQLQuery1.sql - Plato_SQL2017.sandbox (PLATO_Steve (65))_ - Microsoft SQL Server

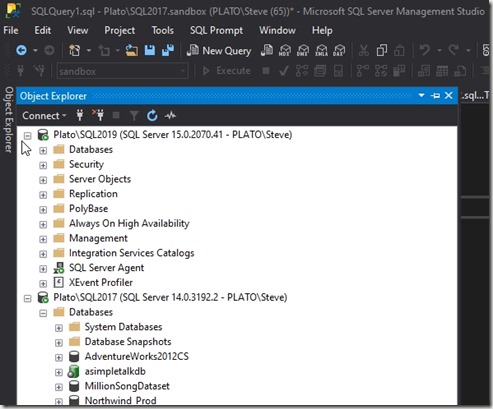

This one is particularly annoying to me.

2020-03-19 11_12_12-SQLQuery1.sql - Plato_SQL2017.sandbox (PLATO_Steve (65))_ - Microsoft SQL Server

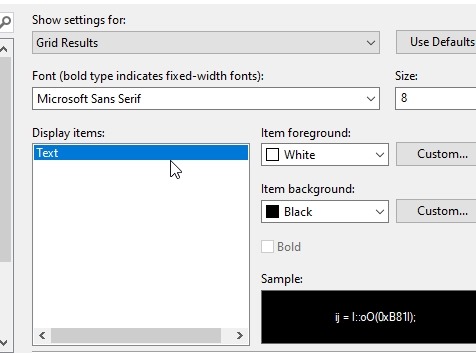

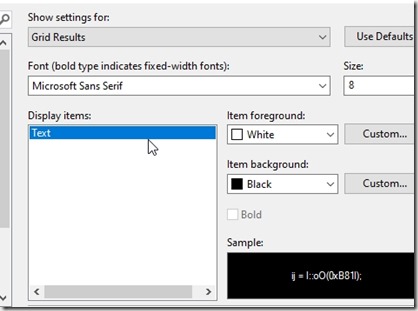

I did try to alter some items, such as my grid results:

2020-03-19 11_19_34-Options

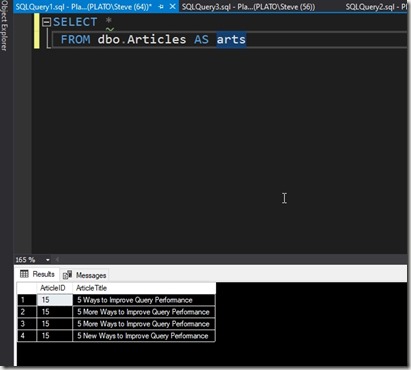

This somewhat works:

2020-03-19 11_20_54-SQLQuery1.sql - Plato_SQL2017.sandbox (PLATO_Steve (64))_ - Microsoft SQL Server

I’ll stick with it for a bit, but I’ll have to see how much the white sections bother me, especially with the Object Explorer.

I don’t know why this is so hard, or why it’s a low priority. When I look at some of the feedback and posts, this is upsetting to plenty of people and it would seem like something that shouldn’t be hard to fix. However, I know this is a thick, old client, and perhaps no one wants to touch the code? I’ve certainly seen that before in other orgs. Perhaps Microsoft isn’t so different.

About way0utwest

Editor, SQLServerCentral
This entry was posted in Blog and tagged , . Bookmark the permalink.

1 Response to Going Dark in SSMS

  1. Trevor says:

    Thanks for the post, Steve! For the grid results, I think the colors set in Tools > Options weren’t respected in previous SSMS versions, but as of 18.3 they do work. The only annoyance for me is that NULL results in the grid show up as white-text-on-bright-yellow cells. That still happens on the latest SSMS, 18.5. So for now I’ve set the Grid Results colors to silver-text-on-black, and it’s mostly readable.

    Like
