Two Types of Performance Counters

I had an issue where an instance of SQL Server was only showing the XTP (In Memory) performance counters. None of the other SQL Server counters were available, so I followed the procedure I’d written about previously. Once that was completed, I restarted SQL Server and looked.

No counters, still.

Hmmm. It was then I scrolled further and realized that I had the SQL Server Agent counters, but not the database engine ones. I looked closer in the Performance folder for my instance and noticed this:

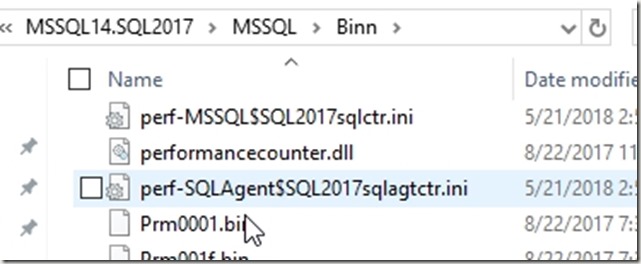

2018-05-29 21_30_31-Binn

There are two .ini files. There are

  • perf-<named instance>sqlcrt.ini
  • perf-SQLAgent<instance>sqlagtctr.ini

These refer to the counters for the database engine and the Agent subsystem. I had unknowingly copied the Agent file for the lodctr.exe call rather than the other one.

Lesson learned. I had to re-run the procedure with the engine ini file and restart the instance again.

If you need to add counters, make sure you load both and run a restart, otherwise you might incur more downtime than you expect.
