Map a Login – Basic Skill #3

This post is part of a series based on my presentation The Top Ten Skills You Need for SQL Server. This post is part of Skill #3 – Setup Security.

I wrote about the basic security model for SQL Server, and got a question about mapping users to logins. It actually is done automatically for you in the dialog when you create a login, but I thought I’d cover the basic process here in more detail.

Logins allow access to an instance of SQL Server. Users are the construct in a database that can be assigned permissions (explicitly or through a role). The mapping between a user and a login is what allows SQL Server to determine which logins get which rights.

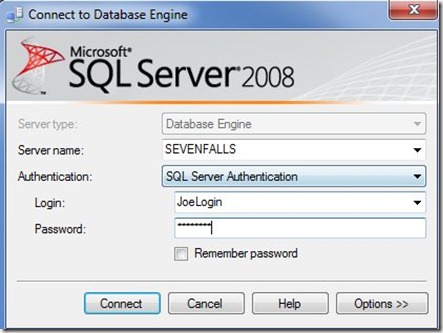

Let’s look at an example. On one of my instance, I have a test login called “JoeLogin”. If I connect to the instance, I enter the credentials of “JoeLogin” and the password to connect.

loginmap

Once I connect, however, the first thing the SQL Server database engine does is set my context to either the database I’ve specified, or my default database. This immediately maps me to a user in that database and allows me the connection to run commands, or it returns an error if I don’t have access.

In this case, I have access to my default database, and I can check on my user credentials with this code:

SELECT USER_NAME()

This returns “JoeUser”, which is my user name. You can read about user_name() here, but it is a system function that returns your current database user name.

My login has essentially been bypassed, and would only be used if I needed to check permissions to execute an instance level function, like setting a configuration value or viewing the error log. However I can check my login by using the SYSTEM_USER function.

SELECT SYSTEM_USER

This will return my login name, and it returns “JoeLogin” on my instance. I can easily see this in SSMS, in the right corner of the status bar at the bottom of the window.

loginmap2

The Mapping

We can view the mapping between users and logins in two ways. If you want to see where a user is mapped, you can right click the user and select properties.

loginmap3

This will bring up a dialog for the user, and at the top you can see the login mapped to this user:

loginmap4

If you want to see where a login is mapped, you can right click the login in the server level Security folder and select properties. This brings up the login dialog, and if you select the “User Mapping” item from the left pane, you will see the list of databases and the user mappings.

loginmap5

In this example, my JoeLogin has been mapped to two database. In db1, the default behavior is applied and the login is mapped to a user with the same name. In db4, I have changed the default and mapped to a user called “JoeUser”.

I haven’t run across a good reason to change the user name from the login name, and I don’t recommend it, but if you think you might have some issues, this is how you check things.
