SQL Source Control v5.0 Beta–First Migration Script

I joined the beta program for SQL Source Control recently. I know, I work for Redgate, I should be in all beta programs. However I present on our various products, and I need those presentations  to work reliably. As a result, I rarely get ahead of our RTM products because I value stability.

However, I really, really like SQL Source Control, and wanted to get the migrations stuff working in Git. Of course, I’m also looking for holes and problems, so I’ll be giving feedback.

Install is simple, though after I download the beta, it took me a week to get going because of other tasks. In the meantime, there were updates. I always check for SQL Source Control updates, and I had to download and install an update. Redgate operates on a very agile, DevOps development cycle, so always check for updates.

2016-03-11 12_27_35-Settings

That was easy, other than the SSMS reboot. Here are the versions of SQL Source Control:

2016-03-11 12_29_14-About SQL Source Control


2016-03-11 12_29_25-Settings

I had a previous database I’ve been using for demos that I keep in GitHub. This hasn’t worked with migrations in the past, but I want it to, so I decided to see how this database would “upgrade” to migrations.

Syncing from GitHub

First I created an empty database.

2016-03-11 12_33_24-Settings[3]

I then linked this to my git repo. This is easy, but I’ll run through it. I select the database in the Object Explorer (OE) and then click link in the SQL Source Control (SOC) plugin. I’m using Git, so this is a good place to start.

2016-03-11 12_33_38-Settings

Next I pick the folder and let the system create the link. Note this repo already is updated from the remote (Github) and contains all my database scripts.

2016-03-11 12_34_40-

Once that’s done, I switch to the Get Latest tab and click “apply” to move all the code to my database. This process reads all the .SQL files and runs them in my database, in the appropriate order.

2016-03-11 12_34_53-Settings

When that’s done, I have a database. Simple setup, and this makes it easy for me to get a dev system on a new instance quickly.

2016-03-11 12_47_44-Start


Now the fun part. Migrations. I’ve been waiting for this version of SOC to support Git. No message here saying my VCS isn’t supported.

2016-03-11 12_48_38-SQL Source Control - Microsoft SQL Server Management Studio

Now I want to create a migration script. There are a lot of things I could do here, but let’s do something simple. I’ll go ahead and add a not null column to my RSSFeeds table.

Let’s try the designer. This is easy enough to do. We’ll add the last column.

2016-03-11 12_56_34-Settings

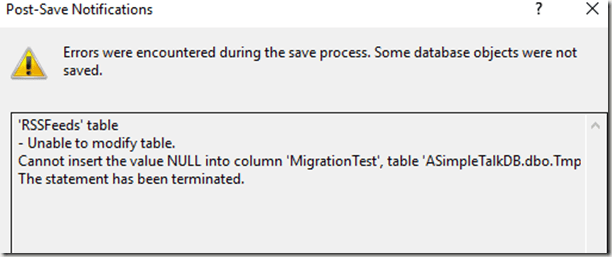

However we can’t save this:

2016-03-11 12_56_42-Post-Save Notifications

This doesn’t work as a script, either. The reason is that SQL Server doesn’t know how to manage this change. What goes in the NOT NULL space?2016-03-11 12_57_31-Settings

There are lots of ways to do this, but the way many people want to deal with this is”

  • Add a NULL column
  • Populate data
  • Change the column to NOT NULL

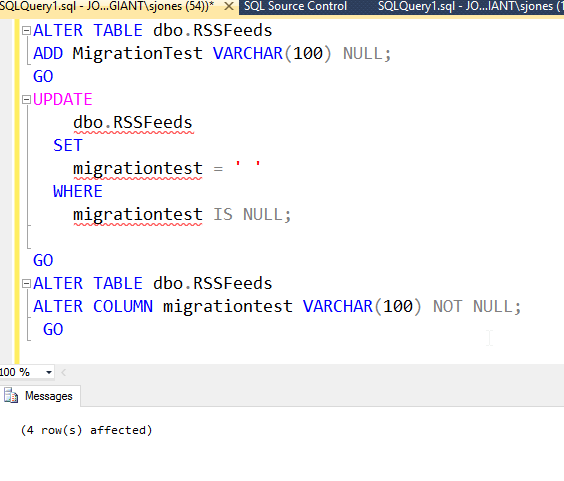

Let’s do that. We’ll use a script to do this:

2016-03-11 13_07_45-Settings

This works, but when we go to commit this change, we see this:

2016-03-11 13_08_09-SQL Source Control - Microsoft SQL Server Management Studio

The tool lets us know this might cause issues, and we need a migration script. If I click on the the “Add a migration script”, I go to the Migrations tab, where I see the table effected. Let’s select it and click “Create migration script.”

2016-03-11 13_08_52-SQL Source Control - Microsoft SQL Server Management Studio

This brings me to the script editor. I’ve pasted in my script.

2016-03-11 13_09_08-New migration script.sql - JOLLYGREENGIANT_SQL2014.ASimpleTalkDB (JOLLYGREENGIAN

Note I also need to give this a name. The default isn’t great.

2016-03-11 13_09_25-Settings

Once I’m done here, I close and save. Now I can see all the items listed on the Commit tab. I’ll start at the bottom. Here is my data change, which is subordinate to the migration script. I’ve scrolled over to see the actual data.

2016-03-11 13_09_45-SQL Source Control - Microsoft SQL Server Management Studio

Now let’s look at the schema. Here the NOT NULL is added, but we know this won’t work. This needs the migration script.

2016-03-11 13_09_57-Settings

And here’s the script. This is what I wrote and pasted in.

2016-03-11 13_10_04-SQL Source Control - Microsoft SQL Server Management Studio

I commit this, and I’ve got a script. Or do I? Do you know what the issue is?

It’s that I didn’t set a default. I left this out to show you there’s no magic here. SQL Source Control isn’t doing the work for you of deciding how schemas should change. Instead, you need to write the appropriate scripts. In this case, I’ll acknowledge and commit, which it lets me do.

2016-03-11 13_15_48-Warnings

However, this will be an issue, so I’ll add another commit. I can check this in my history tab (I committed too quick).

2016-03-11 13_36_00-History

You can see this has added the default. What happens on another machine? Let’s check my presentation VM, which is also updated to SOC v5 Beta (with a snapshot to undo this).

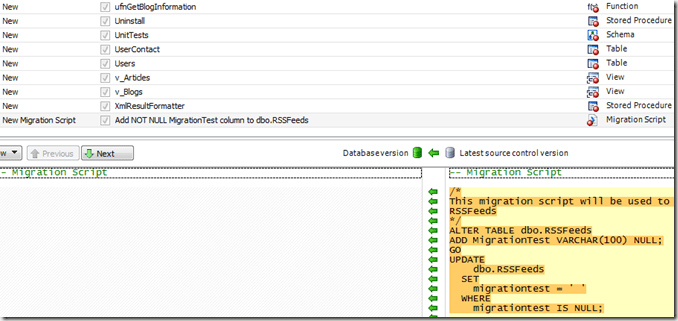

I created a new database and linked it.  At the bottom of the list of objects, I see my migration script.

2016-03-11 13_50_44-Win7x64 SQL 2012 Demo - VMware Workstation

I also see this in the migrations tab.

2016-03-11 13_50_11-Win7x64 SQL 2012 Demo - VMware Workstation

Applying all changes worked. If I look at the table, I see what I expect, with the the NOT NULL setting, the data, and the default is set correctly

2016-03-11 13_56_02-Win7x64 SQL 2012 Demo - VMware Workstation

This is a very basic look at what’s happening with the new SQL Source Control v5. It’s in beta, and if you’re interested, we want more testers and lots of feedback. We’re excited about this release, but we want to ensure it’s the best there is.
