Voice of the DBA

Tag: DLM Dashboard

Team Purple

This is Down Tools Week at Redgate Software, and I’m visiting the office. I had hoped to dive into a team and participate, but scheduling and other commitments mean that I’m only working with a team part of the time.

We had our first standup yesterday. They tried desperately to clip me out of the picture here.

After some morning setup, we walked down to the atrium and gathered in a group, talking about our plans and the work for the afternoon.

We’re using a kanban board, which will live on the glass wall of our conference room. One of the team is “Doing” work on the “doing” part of the wall, filling in the letters. I don’t see a post-it in the “ToDo” section, so we’re already off track. Hopefully when he gets to “Done”, we’ll get a ticket in that column.

We have a number of people working full time this week on a few items, with support from other teams that we’ll need API help from. The developers are pair programming, in 3 groups, with really three goals for the team. They are thinking to switch a few times so that each group gets to work on each part of our project.

Breaks are frequent since the coffee machine is downstairs.

We have a couple of people helping to coordinate and keep things on track, and luckily we got the conference room with the couches.

I’ve been in and out, helping work on the presentation that we’ll give on Friday. Hopefully we’ll have some real, tangible results to show as well as a talk. So far things look good, with lots of progress on the first integration point with another product.

September 6, 2016
Filtering Objects with DLM Dashboard

I’ve been looking at some of the features of DLM Dashboard as I go through work building database development pipelines. In this post I wanted to cover one of the lesser used features, filtering objects.

Note: DLM Dashboard is a free tool from Redgate Software. Use it to monitor the schema of your development, test, and production databases and get notified when changes are made.

Why would you filter objects if you’re auditing changes? Well, this isn’t really an audit per se. It’s more a tracking mechanism that provides auditing, but sometimes you don’t want to audit everything.

For example, in my database pipeline, I have these databases:

As much as I want to track down the changes to code, there are things I don’t want to deal with. For example, I don’t care about users. I (properly) use roles to manage security, and the users in each environment aren’t going to be deployed from one database to the other. More importantly, we don’t need to track them. So let’s stop.

If I go to the right side of my pipeline, I can see a “Filter objects…” link.

When I click that, I get this popup on the left, where I can upload a filter file. The filter file is the same format that SQL Compare uses, and indeed, the easiest way to create one is with SQL Compare. I’ll do that.

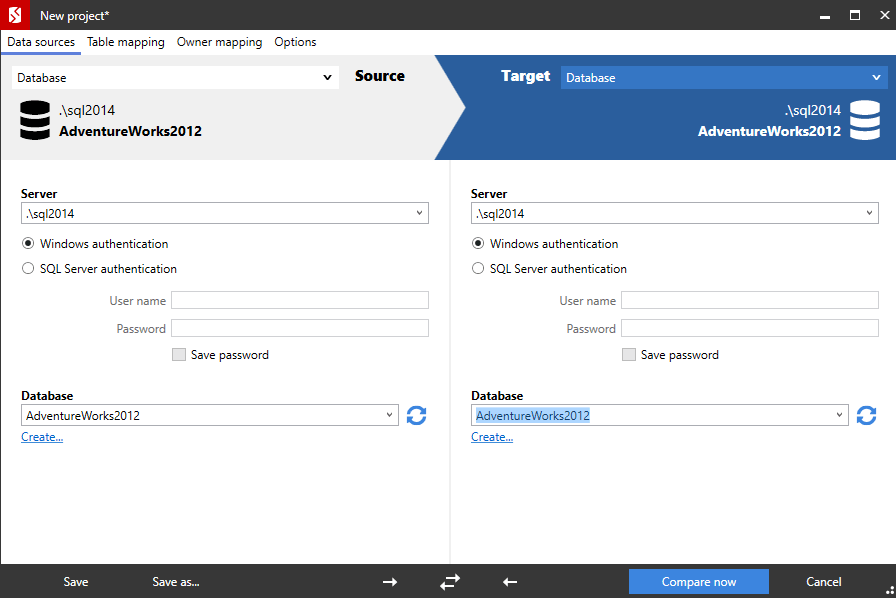

I’ll run SQL Compare and then grab two random databases. It doesn’t really matter since I don’t care about the comparison. Here I’m comparing a database to itself.

When the comparison finishes, I can go to the left side and set filters.

There are a lot of choices here, but I’ll simply remove the checkbox on “Users”.

Once I do that, I can save the filter file. There’s a save icon near the top of the filter dialog.

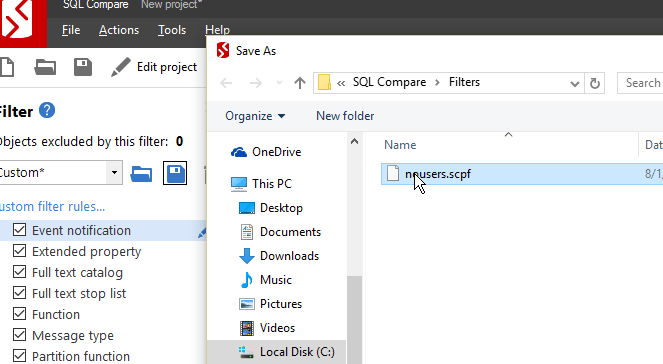

Clicking this gives me a dialog to enter a file name.

Now I can just close SQL Compare. By default, these filter files are in %My Documents%\SQL Compare. Once I’ve saved that file, I can see it in the Windows Explorer.

Now let’s go back to DLM Dashboard. I can browse to my filter file and load it. Once I do that, the filter is applied, and my main page notes that I’ve got a filter applied on that pipeline.

There is a warning here, that notes the change of a filter is actually a drift detection change. This means the schema is not recognized. The same things happens if you remove a filter.

If I look at the details, you’ll see the filter has been applied.

Note: This filter is only applicable to those database in this pipeline.

Now, let’s test this. Users are ignored in this pipeline, so if I add a new user to the database, it shouldn’t affect the system. Let’s do that.

SQL Source Control detects this (though I could filter it here as well).

After I commit the change, it flows through the CI process and gets deployed to the Integration database. I can see the login here:

However, I don’t see drift.

You’ll have to trust that I named the drifted schema this, but what if I include a few changes? I’ll add a new procedure and commit it to my VCS. The CI process runs and this is deployed to integration. Now I can see a change in Integration.

This is the same schema I named in Development (I know, I should use numbering). It’s marked as a change from the CI process, and I need to acknowledge that.

The details of the change:

The history, after I’ve Acknowledged the changes

Filtering Helps

When you’ve got environment specific items, or things that you want to exclude from tracking, filtering works. These might be schemas controlled by other groups or a third party. This might be security information. This could be anything.

By using a filter, you can reduce the noise. By deploying these filters throughout your DLM process, in SQL Source Control, in DLM Automation, in DLM Dashboard, you can limit the extra information that isn’t necessary for you to view.

Getting Started

You can start using DLM Dashboard for free today. Download a copy, at no charge, and monitor up to 50 databases from a single installation. Or install multiple instances to watch more databases.

I think you’ll find DLM Dashboard is a handy tool for tracking those development efforts you want to be sure are deployed completely to downstream environments, while ignoring those that aren’t important.

August 31, 2016
Did My Dev Changes Get to Production?

One of the things that people don’t think about often is whether the changes made in development actually get to production. Usually this is because most changes go, and unless it’s a big change that causes a problem for a large number of customers (or a large customer), we often just deal with mistakes as we can.

That’s not ideal, and certainly not what I’d like to see as a developer. I’d like to get changes to customers quickly enough that I get feedback. In this post I want to look at how DLM Dashboard can help here.

Tracking Changes

There’s a disconnect in traditional software development. Developers write code to meet some spec, and often drop that into some storage spot, hopefully a Version Control System (VCS) and eventually that code gets deployed to production. Whether a web site, client local app, mobile, database, etc., that code tends to move in batches.

Developers typically haven’t been concerned about the overall packaging of all the code, mostly because code gets pulled from multiple people, so it’s hard to track this. We depend on project manager or some deployment person to ensure all changes get deployed.

For the database, because people often manually build, or at least edit, scripts, I find there are more changes for a particular line of code to get left out. That can be bad, and maybe really bad if you deploy the database in advance, such as a day or week before other code.

How do we track changes?

How can we track changes? In a VCS things are easy to see. However, we really need to see a bundle of changes. Having a version of the database, not just the latest version, becomes important. Let’s look at an example.

I’ve made some changes in development, and my CI process pushed them to my integration environment. This shows my current database pipeline like the image below:

In this case, I’ll get a close-up of the details, but I’ve moved my Integration environment from a database v of 4.2.70 to 4.2.71. This is from a new stored procedure, as you can see below.

I can see the details of the procedure, as I’ve shown here.

I typically might not look at each CI build, though perhaps as a DBA I’d go through a series of changes across some period of time. That’s a post for another day. In this case, I usually would approve all the changes occurring in Integration environments. Eventually I’ll end up with quite a few changes. I’ll make a few more, with a few more commits and up the version a few numbers after marking this version as reviewed.

I’ve made four separate commits, and now see this in my dashboard.

As you can see, the CI process has updated the integration database to 4.2.74 from 4.2.70. However, as I dig in, I can see details. The “Review” button only gets me the changes from the most recent commit.

However, I can click “See Schema History” at the top and then click the particular version to see all the changes. Here are the first two.

I don’t care about these changes by themselves. However, I do want to be sure that the appropriate changes have made it through to other environments, especially production. Let’s deploy some changes to the Test environment. Easy for me in Octopus Deploy. Let’s deploy 4.3.74.

Once Octopus Deploy does it’s thing, I should see the same changes in the Testing environment. However, when I look at the SimpleTalk_Test database, how can I tell the changes are correct? It’s not easy.

There are a lot of objects in here, and comparing them piece by piece is a pain. Certainly I could use something like SQL Compare, but do you really want to have to double check your deployments by running another tool? Will you remember to do this? What if development has moved on, as shown below?

To run a comparison, I’d now need to track back versions in my VCS.

However, if you look at the image above, you’ll see that I know what the state of every object in my test environment is. It’s at version 4.2.74. That’s the versions I had in Integration above, and the version I deployed to Test.

Verification

If a developer isn’t sure why something doesn’t work in production, or test, or anywhere else, they can look at the changes that were actually deployed, and reference back to the state they worked with in development. In fact, they could even create a new database, and trace back the exact version of all changes in the VCS or CI server, and actually try to reproduce the issues.

Above all, a developer can tell quickly that if version 73 of the database is deployed, but the code expects version 74, there’s one thing that might need to be checked first: the changes made to the database in v74.

Hopefully you’ll see there is value in using DLM Dashboard as a developer to ensure the work you complete gets deployed correctly to later environments. If you don’t have an automated pipeline like I do, and DBAs or developers create manual scripts, it’s even more likely DLM Dashboard can help ensure all the correct code is deployed.

DLM Dashboard is free, and each instance works for up to 50 databases, so download it to day and give it a try.

Download DLM Dashboard

August 2, 2016
What’s Database Drift?
The first time I heard someone mention drift at Redgate, it made sense to me. After all, in the context of the schema of your database, I can see the code “drifting” away from what you expect. Someone noticed this was a problem when implementing continuous delivery and DLM Dashboard was born.

I grew up on the water, and I learned that if you don’t anchor these things down, they move.

In a database, our code can be the same way. Actually, all code is like this, which is why most professional software developers learn to use a Version Control System (VCS). Code changes, and you want to have some way to anchor down the code you need to work with.

We don’t want to prevent changes to a database with some heavyweight process. I’ve worked in those places, and it’s an impediment to getting business done. On the other hand, we can’t have uncontrolled changes. I’ve been in those environments, and apart from the instability for the business, this creates bad relationships between technical people.

That’s one reason we build DLM Dashboard at Redgate Software. We recognized that tracking and being aware of what’s changed is important. It allows you to respond, and respond quickly if needed, but doesn’t prevent changes.

More importantly, you can track down those items that might have drifted to a new location and feed the changes back to development. Even if they appear to be all spread out.

In Practice

How does this work? Well, download DLM Dashboard and get started. It’s free and for each installation, you can monitor up to 50 databases.

Once that’s installed, you can add the various databases that make up your pipeline for monitoring. For example, I’ve got a SimpleTalk pipeline with four databases in my environments, as shown here:

There are for the following purposes
- Integration – Gets an integrated build of the database from CI, with all developers changes to the head of the branch of development.
- Testing – A particular version of Integration is deployed for additional testing.
- Acceptance – A pre-production environment, where the database upgrade is practiced.
- Production – The live, final environment for database changes.
I could have other databases in my pipeline (DR, training, beta, etc.) , or even multiple databases at each stage. However, this is a fairly simple pipeline.

Now, let’s suppose I realize we have an issue in production. I need to change a stored procedure that’s got a bug. Someone forgot a WHERE clause in this procedure, and I need to make an emergency fix.

Let me add code and recompile the procedure.

This is a new version of my procedure on production (note the RED outline, thanks SQL Prompt). I have drift. My schema is not in the same state as it was. Production now has a red note, with the drift image.

This change isn’t recognized by DLM Dashboard. The version of each object, of all the code, is stored and tracked. The previous version was 50.17, which is the version of Acceptance. If I click the “Review”, I can see the details. At the top, I see the old schema version, as well as a summary of what changed and by who. I can name this schema if I want, and add comments about the changes.

Scrolling down I can see the actual code that changed. Using the style that SQL Compare and other tools use, I see the additions to the code highlighted, showing what was in the previous version as well.

At this point. I can copy this code, put it back to development, and run it through the same cycle as all my normal development changes, including the testing that might ensure my “hotfix” is actually the change that was needed.

Depending on my development process, this might be deployed as a new change, or it might be ignored when the next deployment takes place. Either way, my process should be able to handle this appropriately. If not, I need to better manage my development.

I think DLM Dashboard has a number of uses, but certainly the capture of changes to production, ensuring you’re aware of what changes, is a valuable one.

I hope you’ll download it today, since it’s free, as in beer, and it’s worth a test in your environment to see how it can help you.
